A North Sea Sill Synthetic

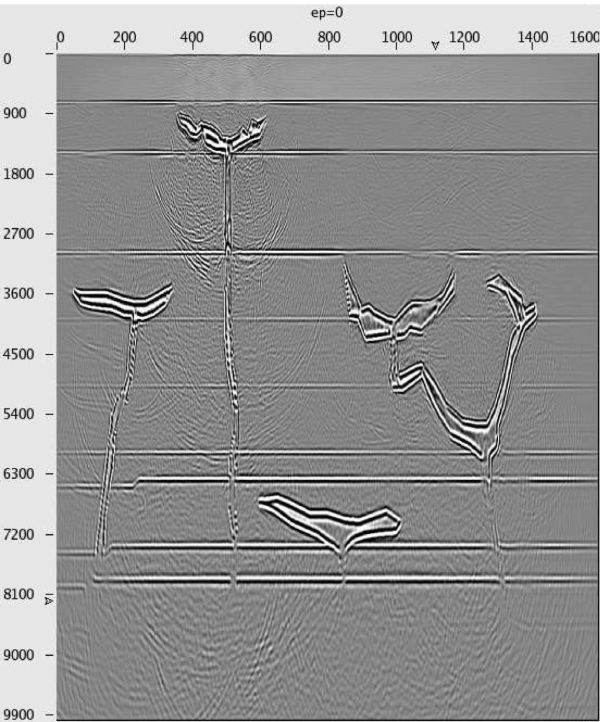

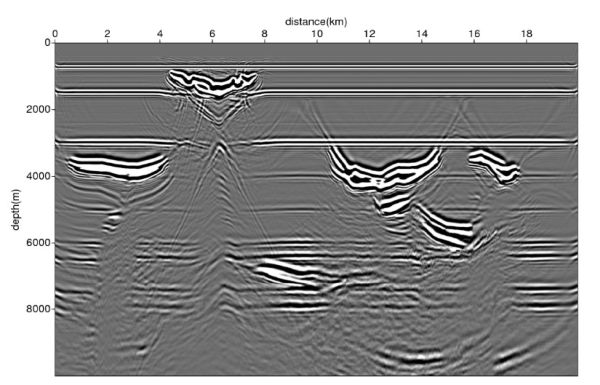

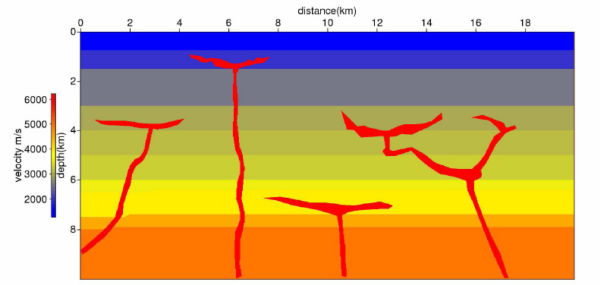

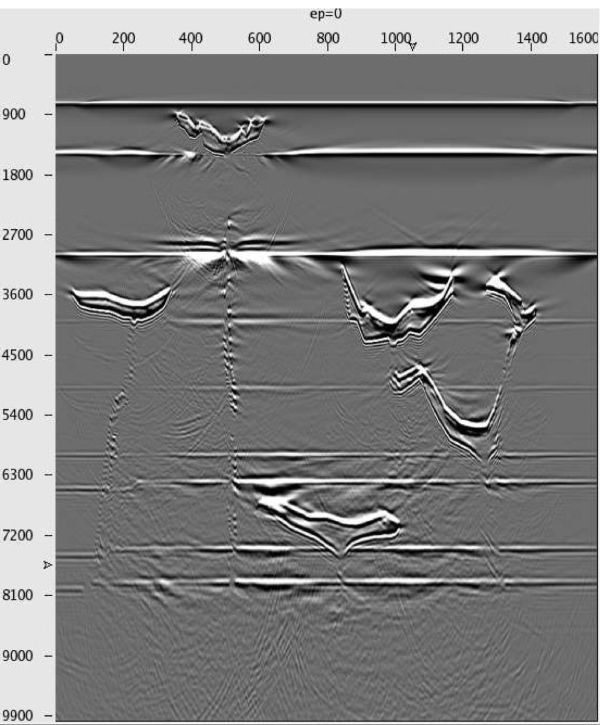

The model in Figure 3 was designed by Dr. Rob Hardy at Trinity University in Dublin, Ireland. The synthetic data were generated using Panorama Technologies advanced finite difference modeling technology. All images in this figure were based on the same input data. The Kirchhoff image was the result of an application of Seismic Unix's Kirchhoff migration from the Colorado School of Mines.
(a)
Volcanic
Sills
Model
(c)
One-way
FKX
of
the
Sills
Data
|
