Live Example 2

• Real-world VSP done for comparison with the traditional wavefield-separation
approach, as well as with surface data.

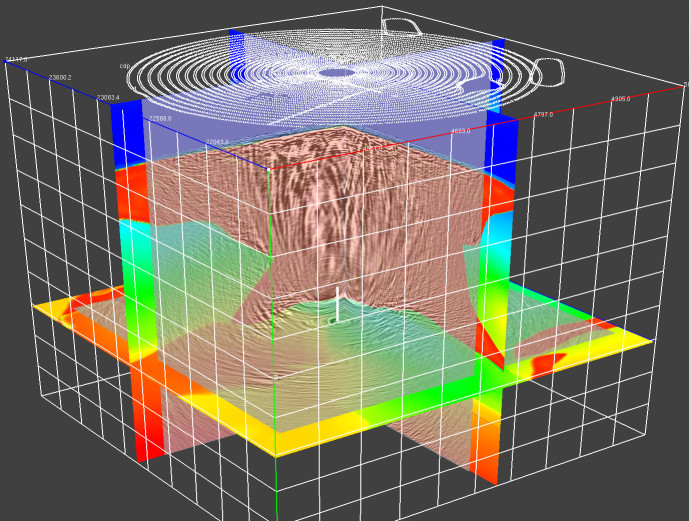

• 40 receivers in the (vertical) well at the bottom of salt (lateral center of these images)
• 20 in the salt
• 20 below.
• Panorama VSP exceeded the traditional VSP, and in some cases even the surface image.

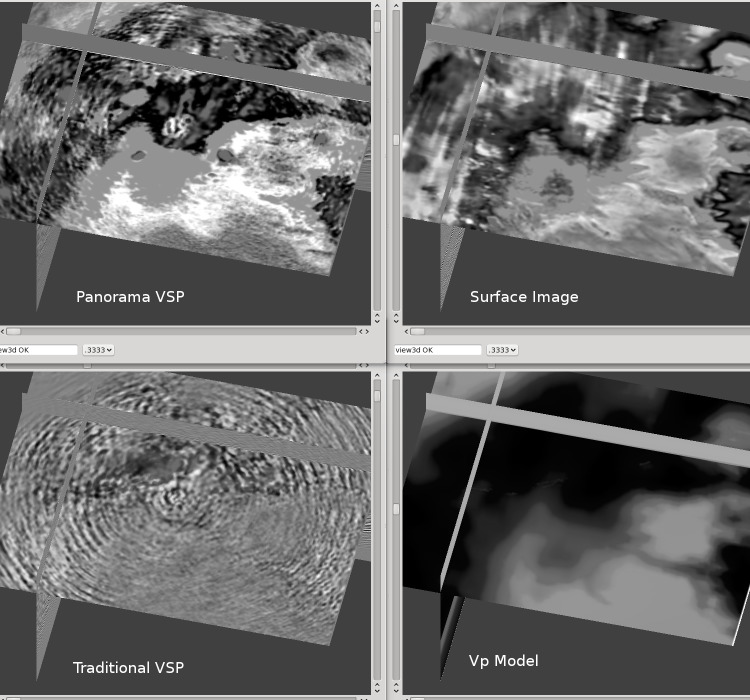

1 / 3 - z=6550

Depth 6550 m, between salt top and water bottom. Panorama VSP matches surface data (sediments, details in salt, etc)

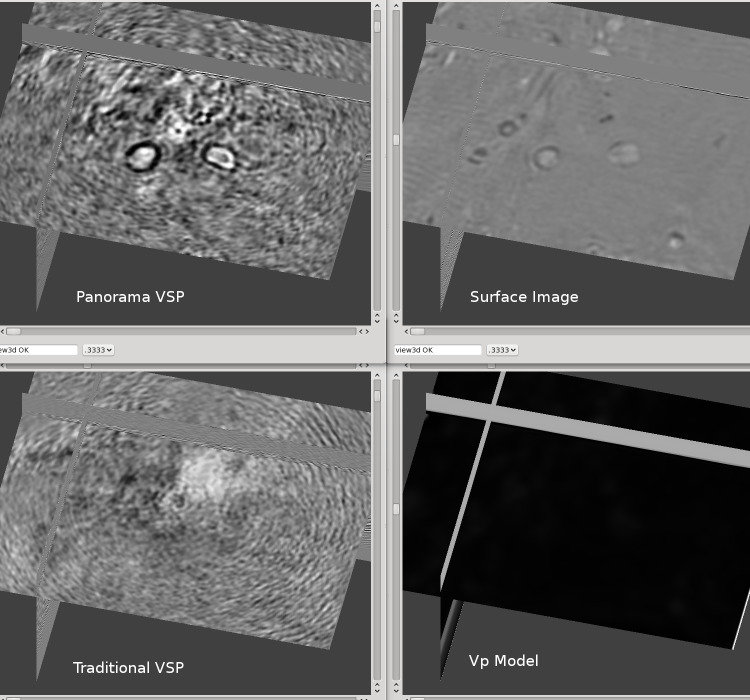

2 / 3 - z=8000

Depth 8000 m, mostly in salt. Note occlusions show fair match to surface data; not present in traditional VSP

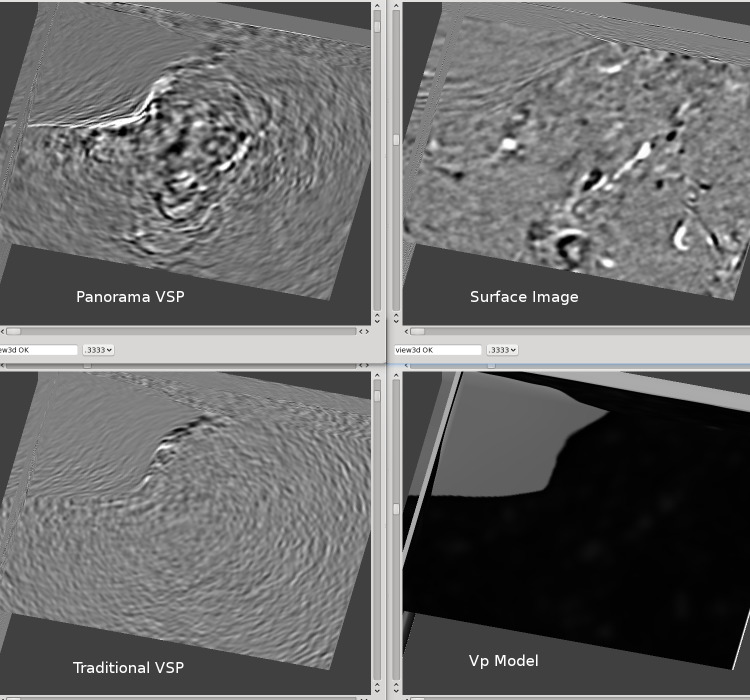

3 / 3 - z=15700

Depth 15700 m, mostly in salt. Note salt face better defined than surface data (even in traditional VSP)

❮ ❯
