Live Example 1
Real-world offshore "rig-source" Brazil VSP; despite poor acquisition, showed a good match to surface data.
137 geophones all along. Imaging is really only good near the well, and the only
question likely answerable is of the match of VSP to surface image.

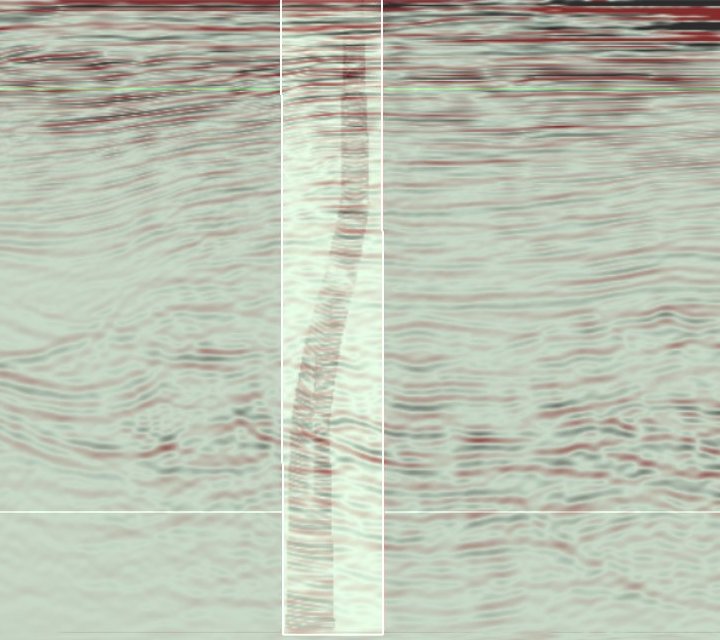

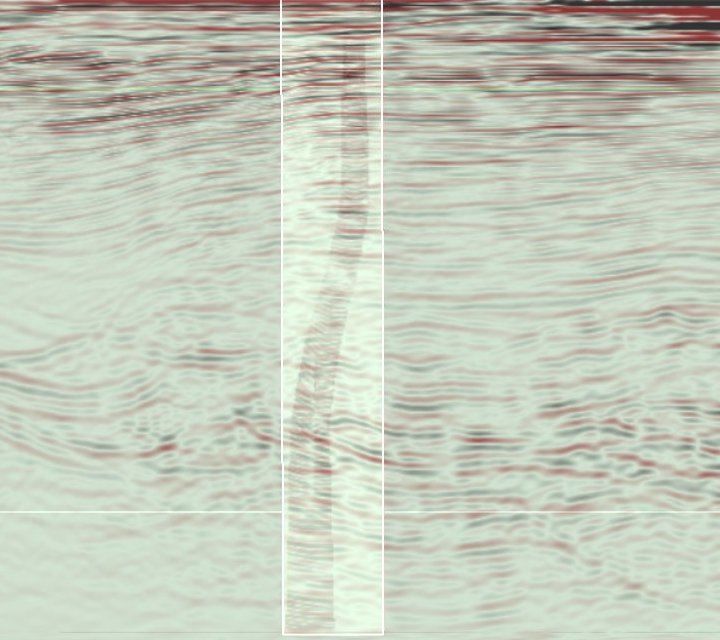

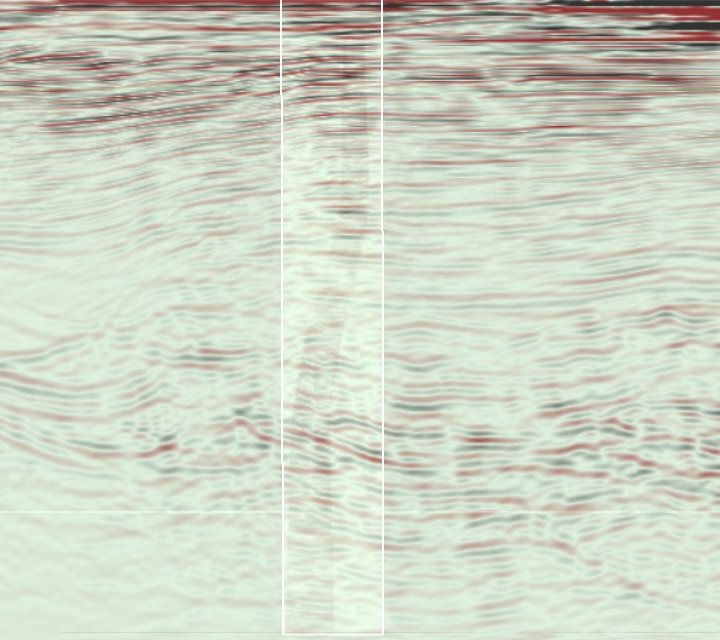

Shown is a series of images of the VSP image overlaid on the surface image, with varying opacity
to show the match between the two.
1 / 4
Opacity 1
2 / 4
Opacity 2
3 / 4
Opacity 3
4 / 4
Opacity 4
❮
❯
